Optimize thermal management in high performance computing environments

Engineered for Efficiency

Built for real-world performance Ready to deliver in any scale or setup

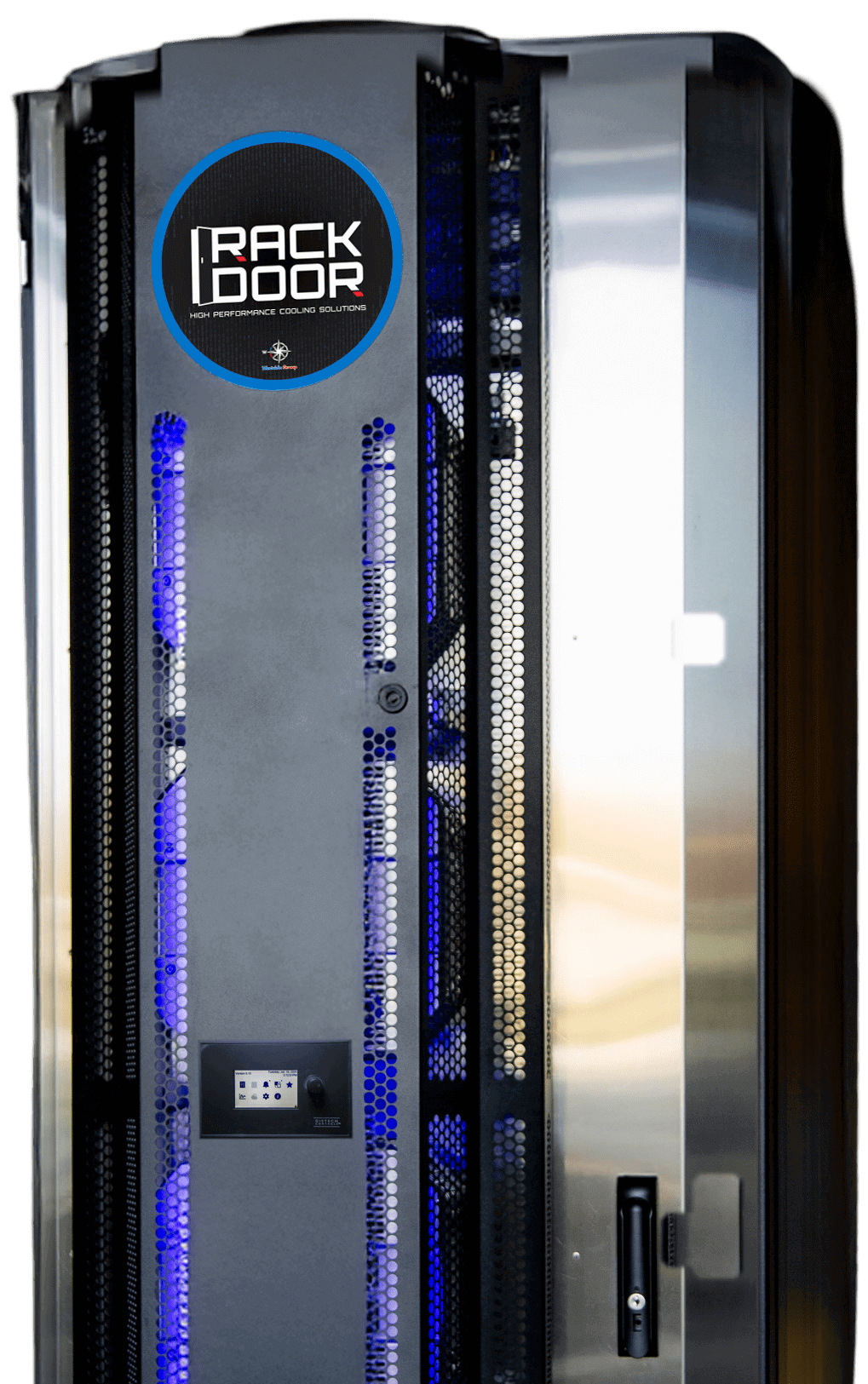

The Westside RackDoor is an advanced integrated solution, engineered and tailored to optimize thermal management in high-performance computing, such as supercomputer data centres.
It effectively extracts heat generated by high-density racks, ensuring optimal operating temperatures and sustained system efficiency. Engineered with a whole-system approach, the Westside RackDoor addresses the unique and complex thermal dynamics of HPC cooling, delivering exceptional heat rejection and efficiency.

The Westside RackDoor requires:

  • Minimal infrastructure
  • Minimal down time due to ease of serviceability

Designed to meet the demands of modern data centres:

  • Integrates seamlessly with standard server racks – including simple drop in hinge installation
  • Allowance for top or bottom pipe connections depending on site requirements
  • Compatible with SCEC certified racking

Key Benefits

Australian Manufactured

Proudly designed and made in South Australia

Superior Heat Removal

To suit today’s HPC requirements

Custom built models

Flexibility in design to suit the server rack

on board smart control & instruments

Reducing network infrastructure

Services

Installation and maintenance services provided

Additional features and benefits:

  • Visual status using 3-stage colour coded LED lighting
  • Provides security and access control with options for individual identification
  • Real time monitoring and trend logging of door performance
  • Fail safe provision with manual override, in the event of critical failure
Enquire now

Key Features

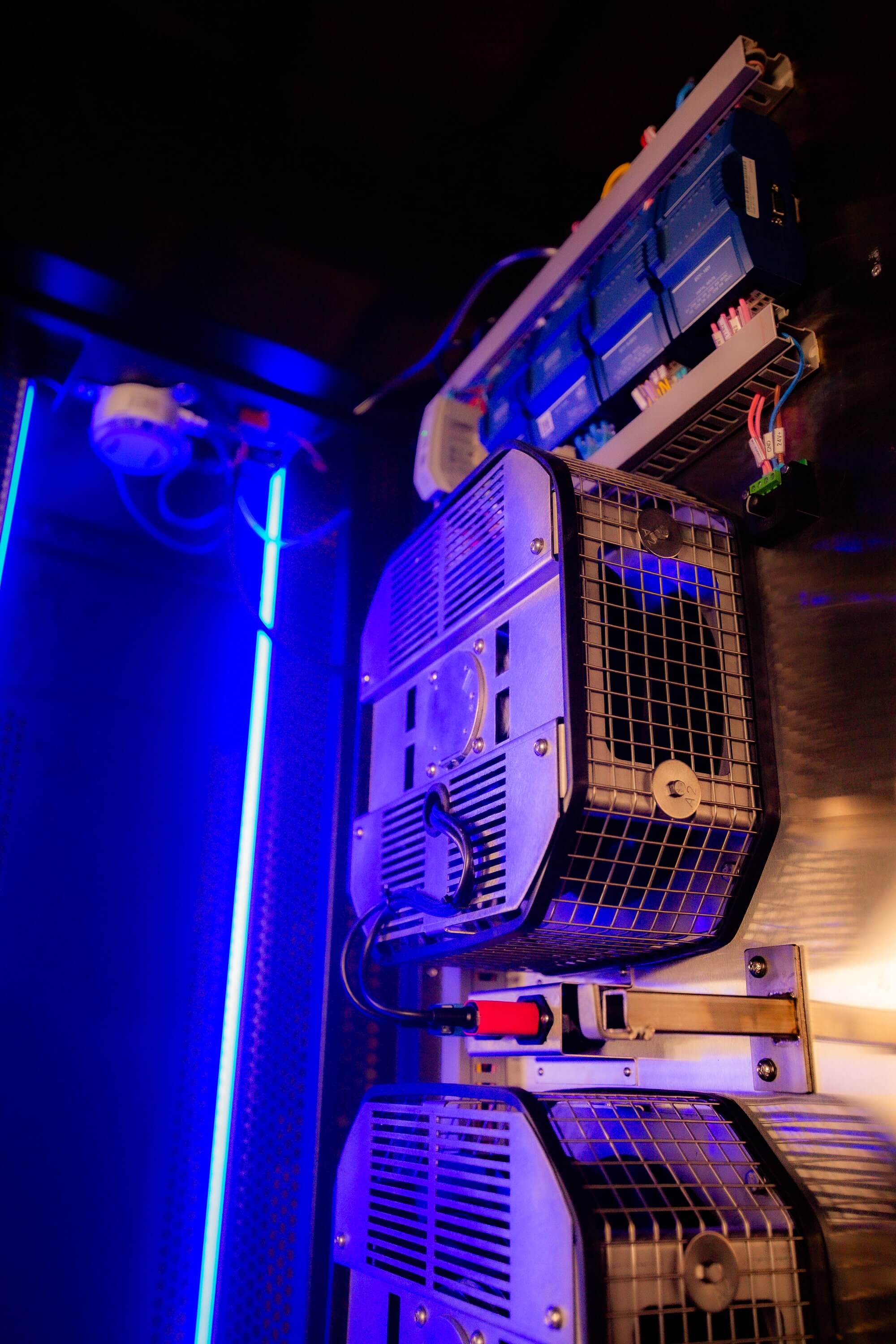

Hot Swappable Fans

allows for quick service replacement with no downtime

Led status indicator

provides your data centre team with visual rackdoor status

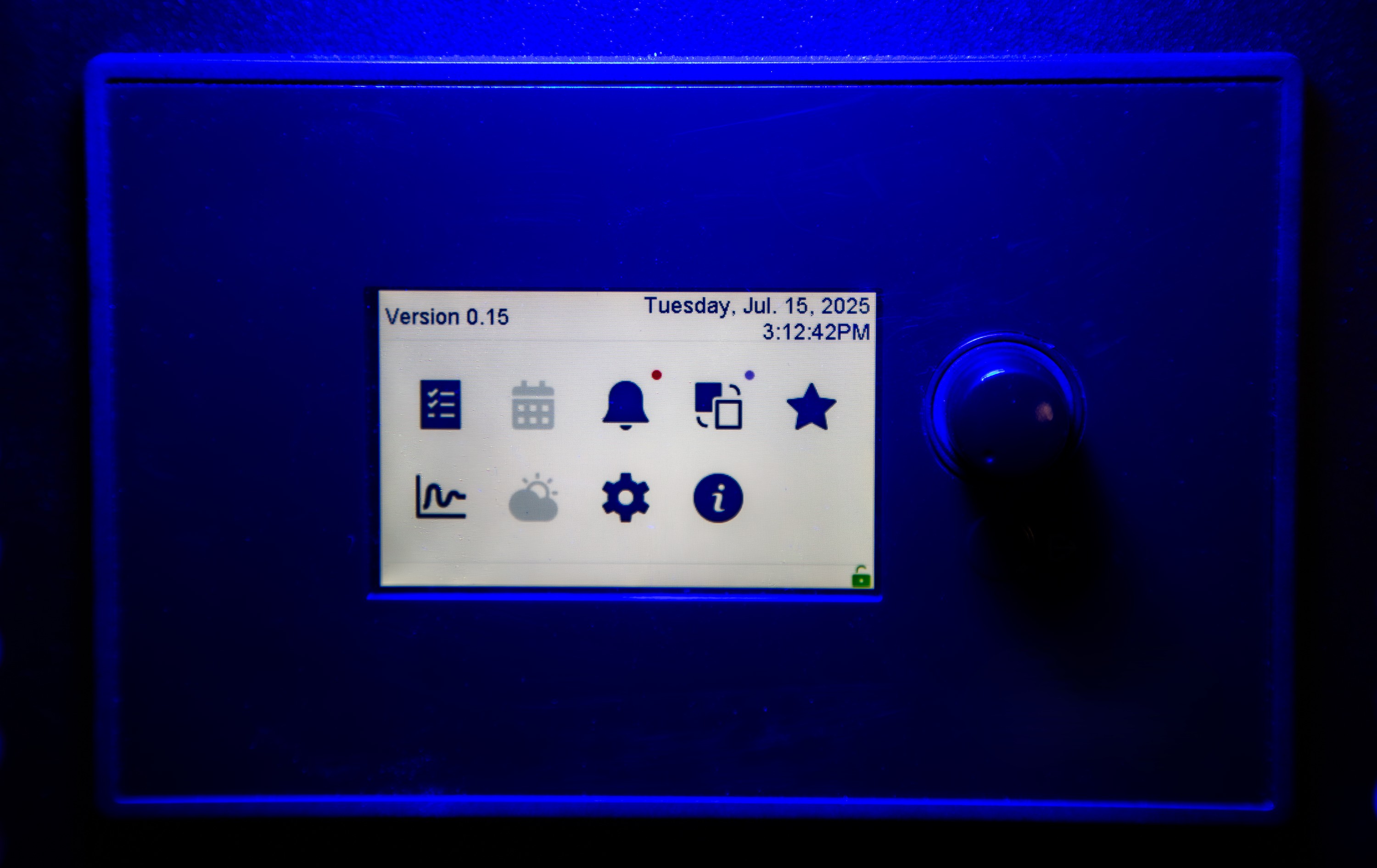

Display Screen

simple navigation, adjustable set points and alarms provide you with individual rackdoor setup, control and monitoring

Interface frame mounting system

seamless integration with your server rack

Low profile footprint

maximum cooling, compact design

Service and Maintenance Offering

Ease of Installation

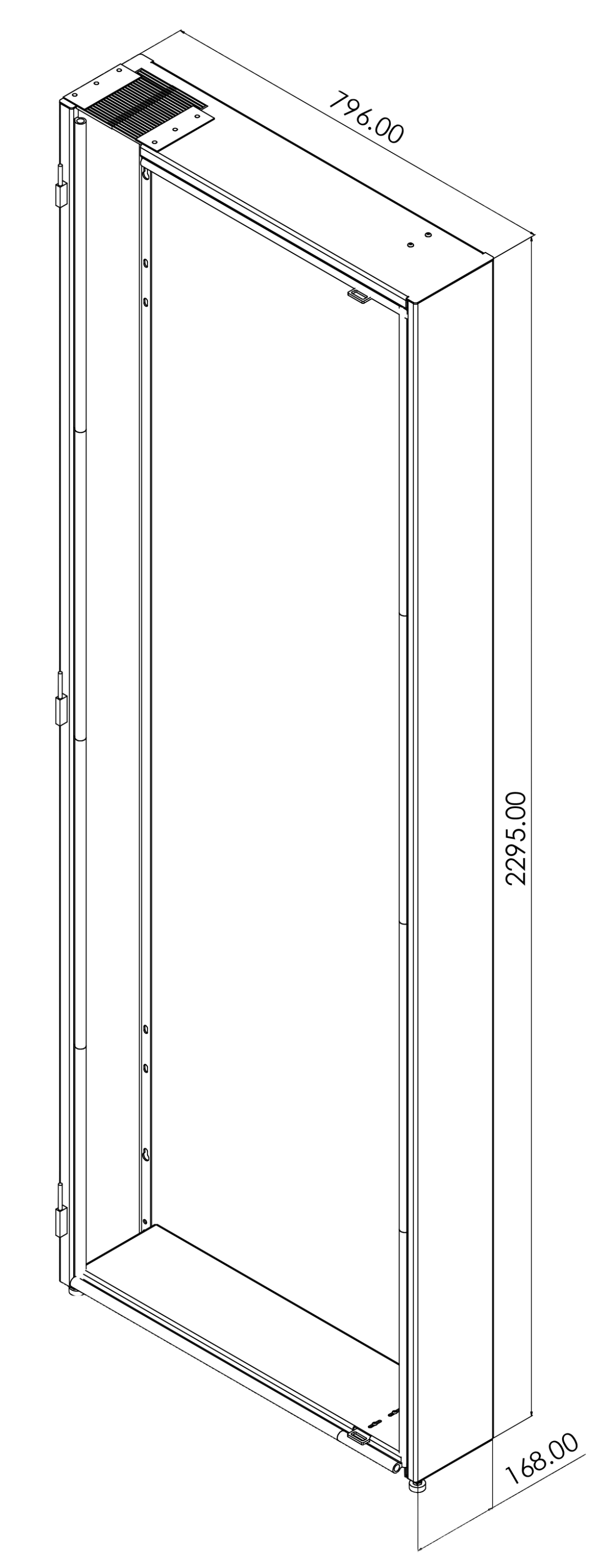

  • Westside adapter frame has compact design with a depth of 185 mm which enables the RackDoor to mount on any type of server rack.
  • Integrated 4 point lifting lugs for ease of movement.
  • Offset pin arrangement for ease of mounting.
  • Fixed plug in for Power and Comms connections.
  • Adaptable fitting for connecting hoses.
  • Installation roller to assist in maneuverability.

Service and Maintenance

  • Westside Group's expertise in building services extends to data center cooling infrastructure allowing us to provide complete installation, servicing, and maintenance for our product.

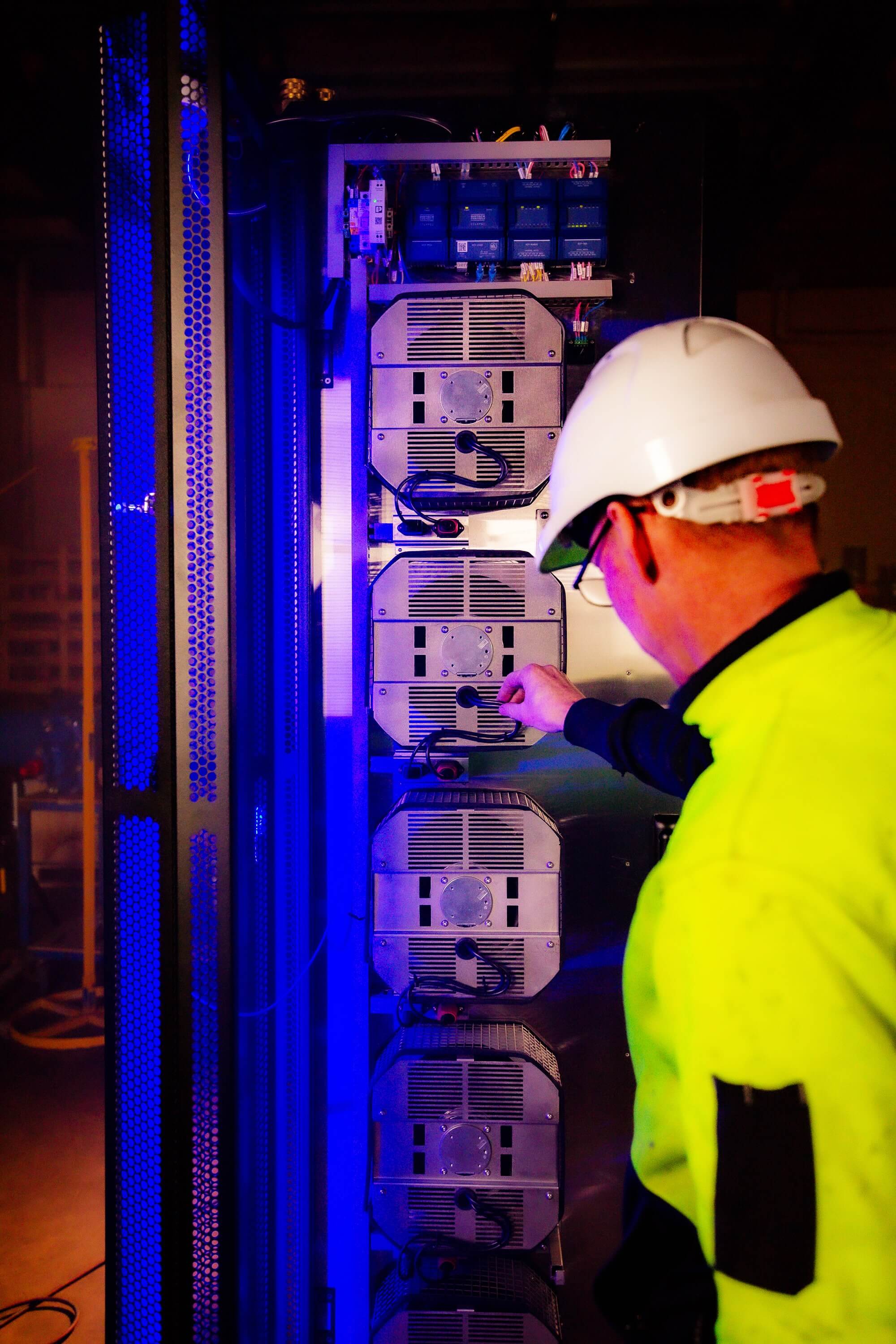

  • Hot Swap fan design allowing replacement while in operation.
  • Component reporting and LED visual lighting to notify status.
  • Accessible wiring and individually labelled.
  • Our dedicated service team supports you throughout the entire lifecycle of your RackDoor - providing spare parts, expert assistance, and rapid response to ensure maximum reliability and minimal downtime.

Feature Components

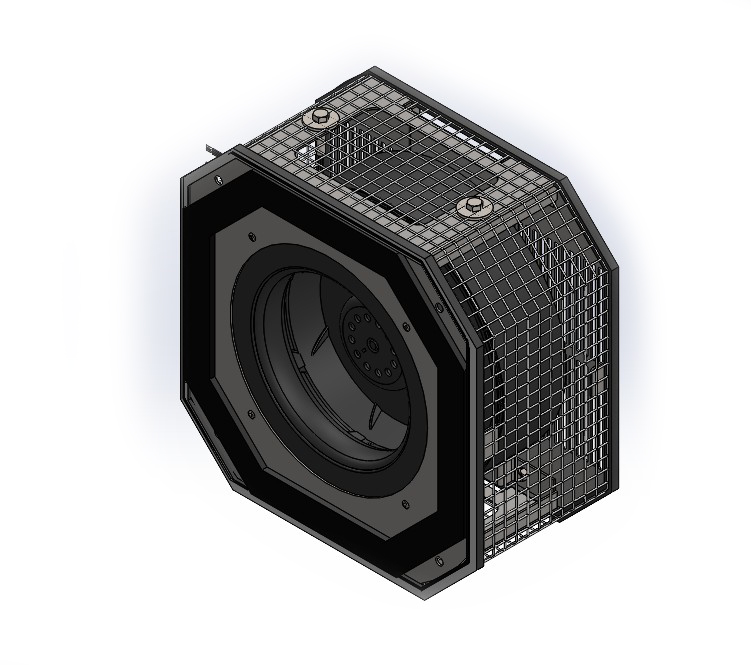

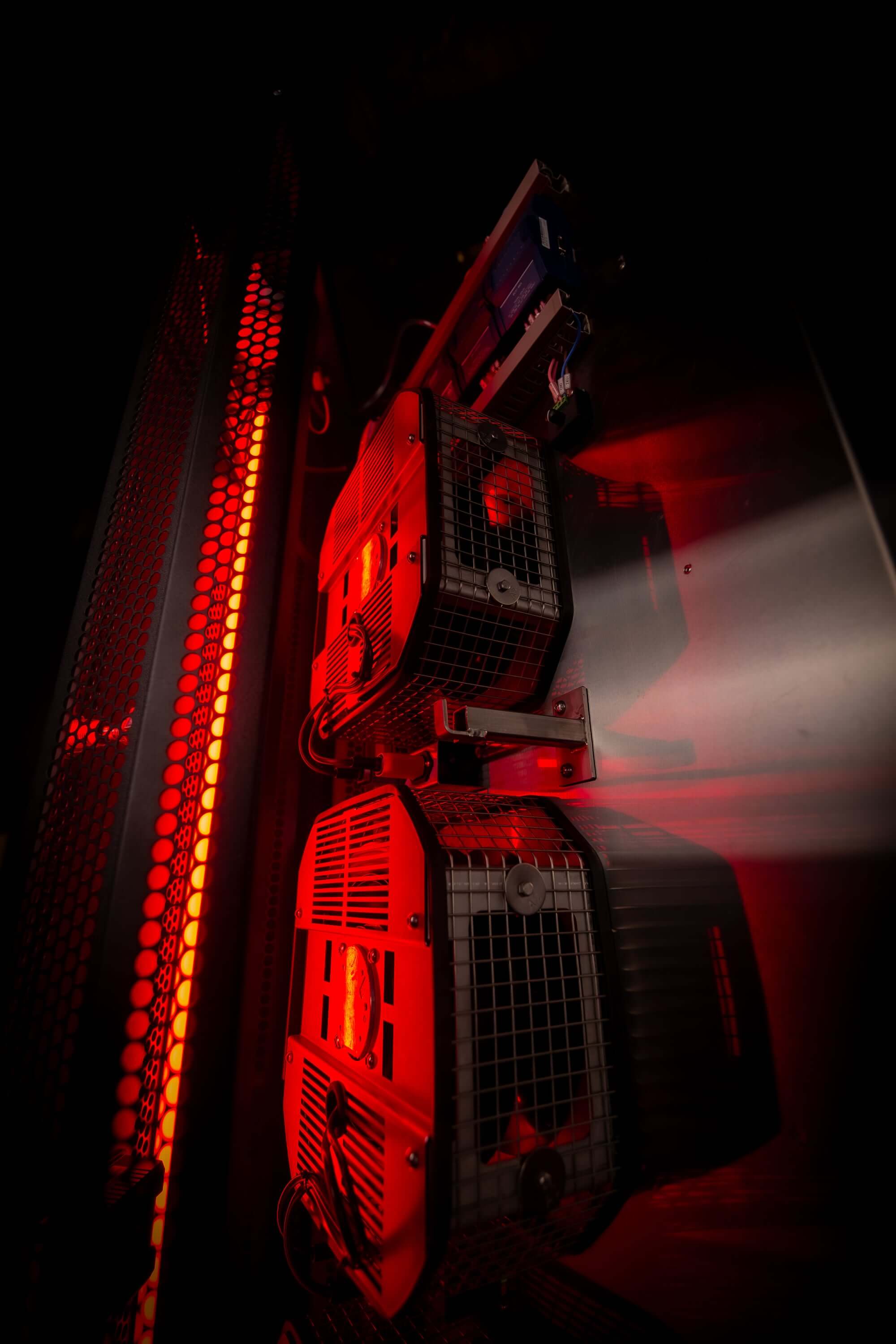

FANS

  • EC fans with power factor correction and over temperature protection.

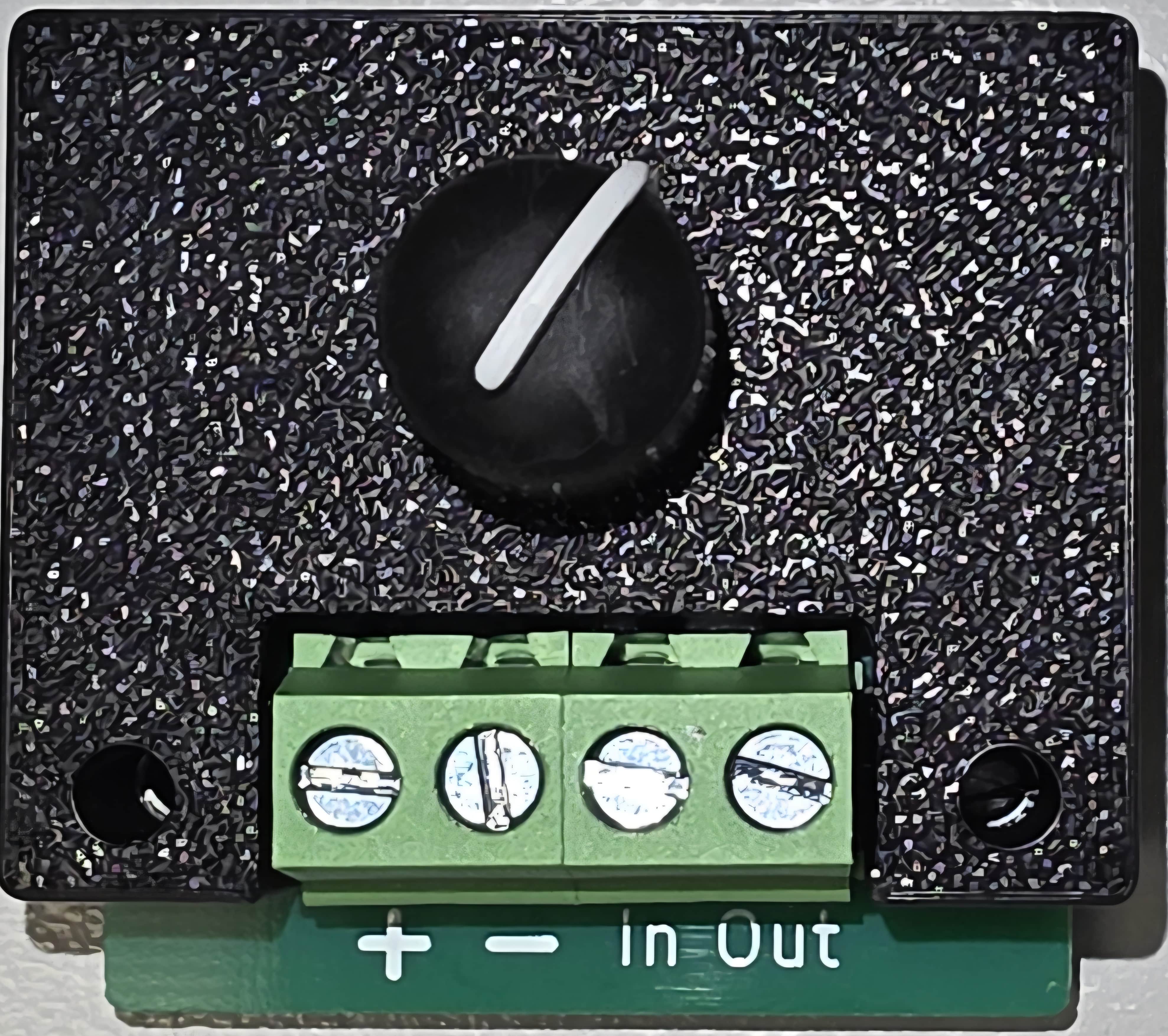

Manual Fan control unit - take back control instantly

  • In mission-critical environments, downtime is not an option. Our manual fan control unit gives you complete control, exactly when you need it most. Whether you're updating your control system, troubleshooting communication faults, or dealing with the controller failure, this unit steps in to keep your airflow consistent and reliable.

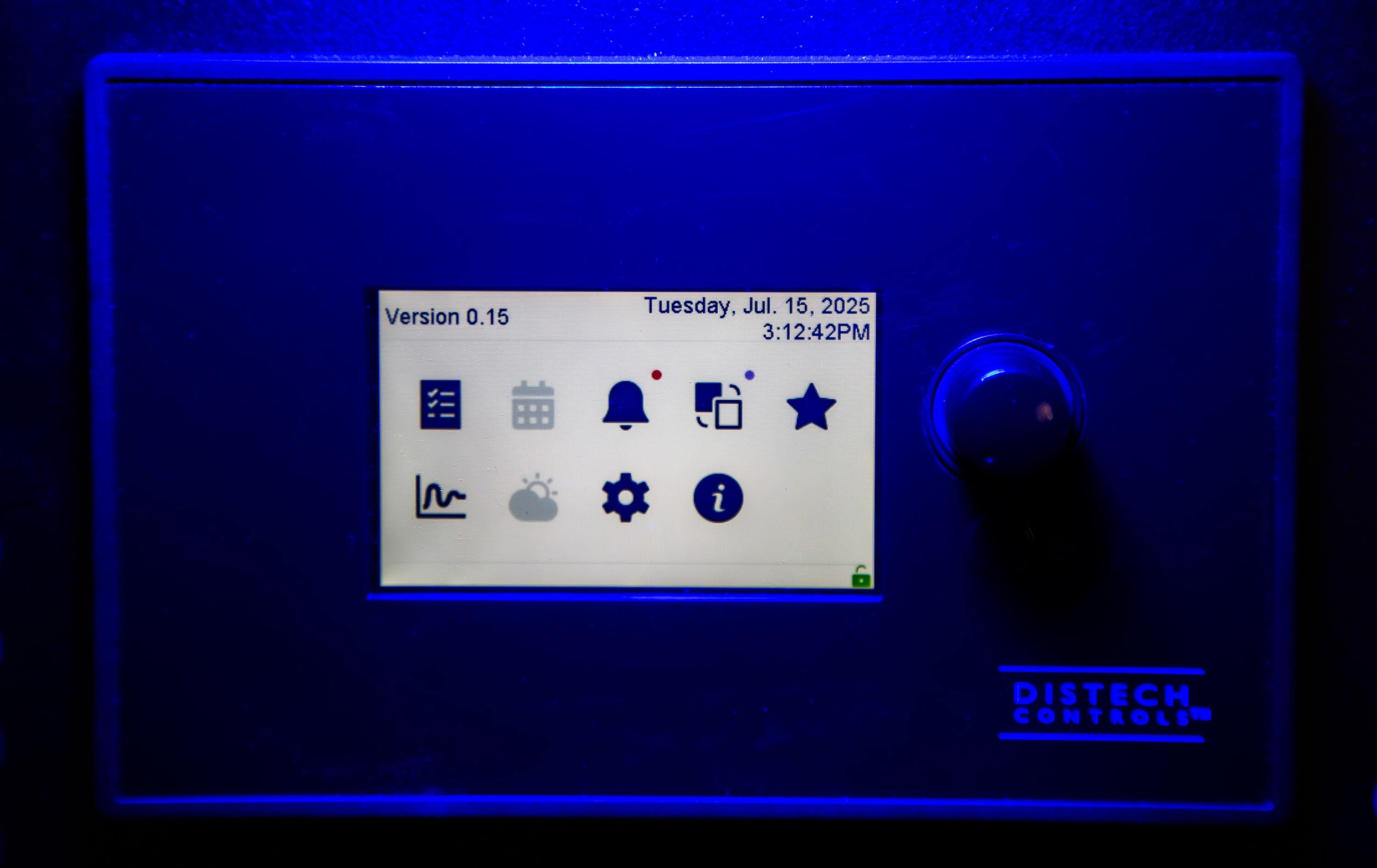

Monitoring and Control

  • User friendly LCD control display screen.
  • View and edit control functions.
  • Display and acknowledge the alarms with time and date monitoring.
  • Easy on-screen PID tuning.
  • Multiuser management for access restrictions.
  • LED indicators.
  • Shortcut to favourite settings.

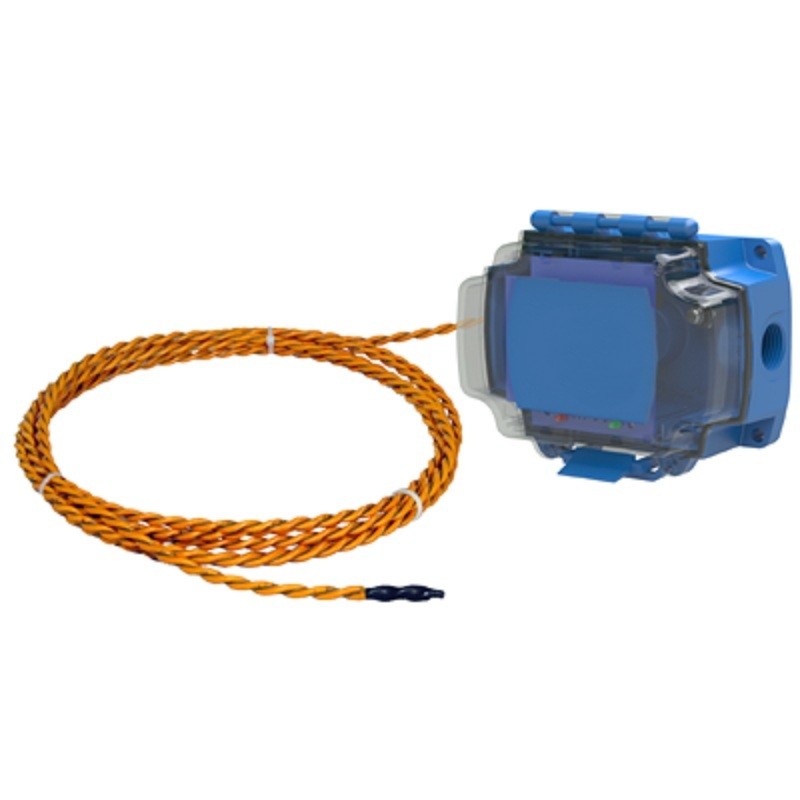

Leak detection sensor

  • Detects the presence of water and alerts control system.
  • Detector with rope sensor secured on a tray mounted to the door (under the coil).
  • Detection within 5 seconds.

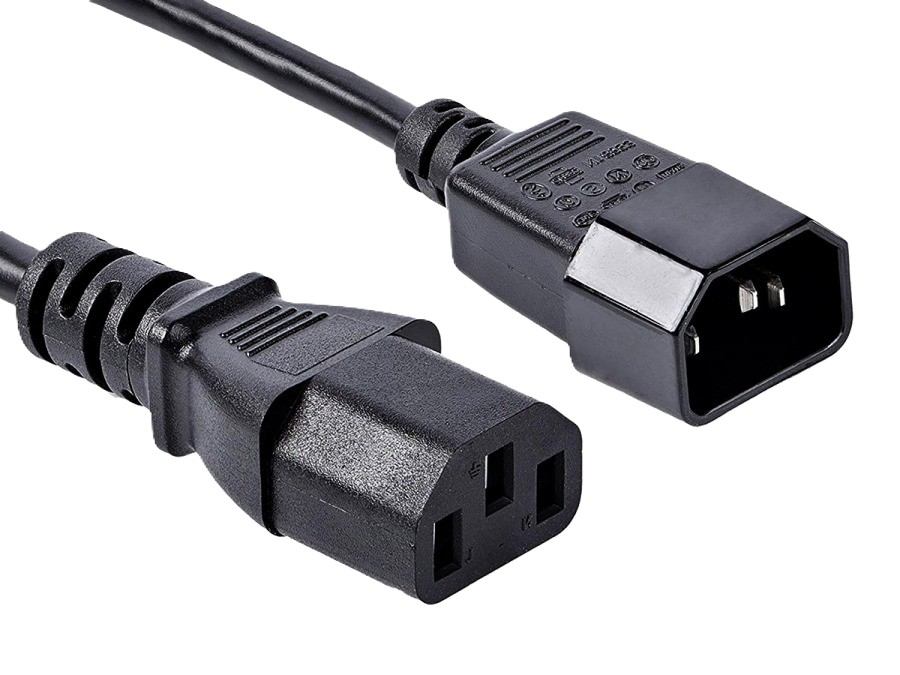

Power supplies - dual power supply (feed - mains)

  • Plug in facilities for fan and power supplies.

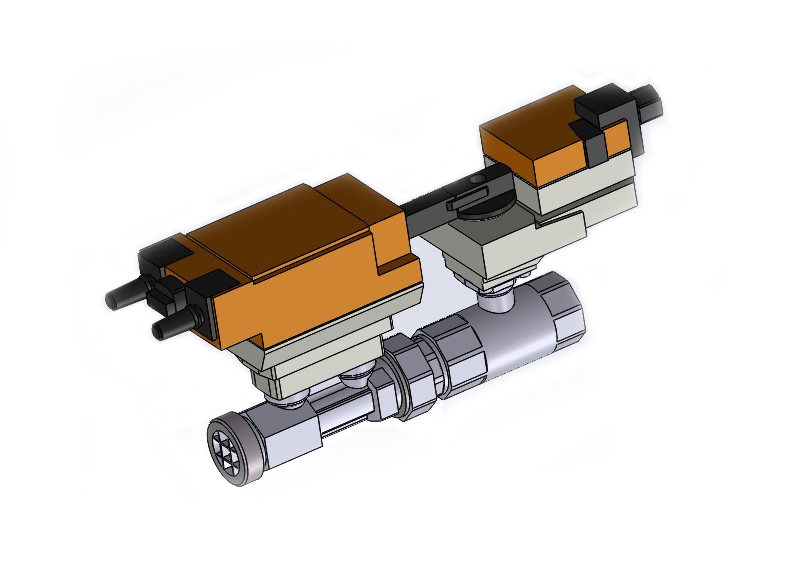

Integrated intelligent valve

  • Function
  • Communicative control
  • Energy Metering
  • Modbus TCP, Modbus RTU, BACnet/Ip, BACnet MS/TP

Technical Specificatins

Specification Table
Model RD-WSG-DTC-2501
Color Shroud: Black | Frame: Black | Door: Stainless Steel
Height mm 2290
Width mm 761
Depth (not including frame) mm 290
Dry Weight kg 150
Wet Weight kg 170
Water Volume Capacity liters 20
Maximum Operating Pressure kPa 1200
Maximum Operating Temperature (Air) °C <60
Pipe Connection Top or Bottom
Cooling Capacity KW 60
Power Supply - Input Voltage V 230V-50Hz/10A
